Detail

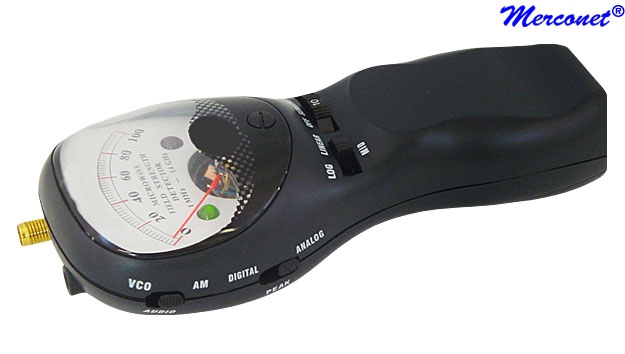

The AAF9 is a professional Radio Frequency (RF) measuring instrument. It excels at detecting and measuring all Radio Frequency signals between 1 MHz to 14 GHz. The AAF9 has the latest micro-IC components, pre-amplifiers, high frequencies filters and advanced circuiting that are by products of the wireless boon in electronics. It employs several stages of active detection (rather than a diode detector) giving it extraordinary sensitivity. The sensitivity of this instrument approaches that of a tuned receiver. Even with this high sensitivity, it still has broadband detection capabilities that enable it to measure all signals – irrespective of being spread–spectrum, frequency hopping, pulsing or trunking. High sensitivity is needed to detect the weak signals from covert milliwatt transmitters, cell phones and tiny hidden cameras. The newer 5.8 GHz and 2.4 GHz transmitting devices can be detected at greater than 10-20 feet (~3-6 meters) using the AAF9. This allows the quick and effective security sweeps of large conference rooms or small restrooms. Signal overload is avoided by using a logarithmic amplifier with 1000 to 1 dynamic signal range – making it easy to pinpoint the signal source at its exact location.
Kenmerk
- Fixed internal antennas requiring no adjusting
- High sensitivity, -90 dBm @ 2.4 GHz, -80 dBm @ 5.8 GHz, -60 dBM @ 12 GHz
- A 1 MHz to 14 GHz bandwidth
- A switched external Coaxial SMA connector for directional antennas, or frequency filters
- A high-frequency band pass filtering system-eliminating noise in the lower frequencies that conceal higher frequency signals
- A USB output for remote monitoring, and powering. The remote signal can also be used to switch on & off security accessories (DVRs, cameras, alarms)
- Differentiation between Digital and Analog signals
- Audio ouputs for AM detection and hearing signal strength levels with a VCO
- A directional 1.8-6.4 GHz Log Periodic antenna
- Omni directional 0.9, 1.2, 2.4, and 5.8 GHz dipole antennas
- Volume controlled headphones, speaker, USB cable, SMA/BNC coaxial adapter, and 100 to 240 VAC international power supply

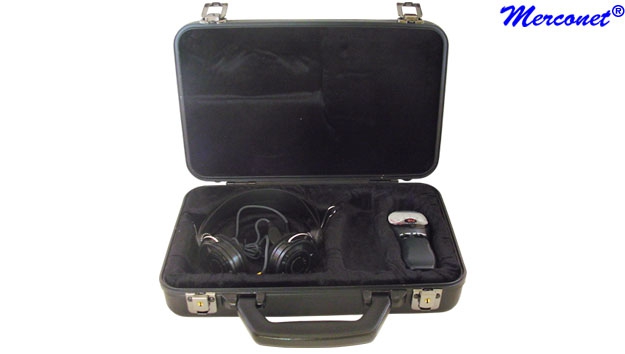

- A hard, crush-resistant carrying case
Info
The AAF9 can be switched between its own, internal antennas or any external antennas or filters. A coaxial connector enables particularly directive external antennas to be used. The AAF9 security package comes complete with a handy 1.8 – 6.4 GHz Log Periodic antenna. This directional antenna increases sensitivity by 3 times in one direction. Point and detect! A custom Yagi antenna with 8 times more sensitivity and directionality at 2.4 GHz is also available. People familiar with spectrum analyzers recognize that a large majority of RF signals in our environment come from transmitting sources below 1.5 – 2 GHz. These sources include AM and FM radio, television, cable and satellite television, GPS transmitters, cell phone repeaters, and utility, police, hobby, aircraft and marine transceivers. The AAF9 has a special band-select switch that eliminates the reception of signals below 1.5 – 2 GHz. This clears reception of the Field Strength Detector exclusively to signals between ~1.5 GHz to 14 GHz. This high frequency band is more likely to contain the newer bugs and covert transmitters. Eliminating the lower frequency signals also allows a higher sensitivity to be used in the received high frequency band. A mini-USB connector on the AAF9 allows the meter reading, and AM or VCO audio output of the device to be monitored at a remote location. The remote meter readings or audio signals can also be used to turn on or off other security equipment (such as video recorders or alarms). The mini-USB connector also enables the AAF9 to be powered from a remote +5vdc power source. These features make the AAF9 especially suitable for wireless detection, wireless installations and long-distance alignment of Radio Frequency (RF) signals. The AAF9 is also uniquely capable of detecting and locating interfering signals such as from cell phones, errant RF transmissions, radio frequency interference, utility line noise and cable leakage. A prime use for the AAF9 is as a first-line TSCM detector - a counter surveillance detection apparatus that is the first instrument to use when starting a sweep or sniffing out covert devices.
Specificatie
Sensitivity: | -90 dBm at 2.4 GHz, -80 dBm at 5.8 GHz, -60 dBm at 12 GHz |
Bandwidth: | < 1 MHz to > 14 GHz. Simultaneous multiband detecting including spread spectrum, signal hopping and trunking |
Sensitivity Controller: | 20 dB, (10 to 1) signal range adjustment |
Detection Modes: | LINEAR - far-field detection of the weakest signals, 15 dB dynamic range |
| LOG - near-field localization and pinpointing, 60 dB dynamic range |
| MID - intermediate detection, 30 dB dynamic signal range |
Antenna Selection: | INT - internal, fixed, omnidirectional broadband antennas. No adjustments required with telescopic antennas |
| SMA - 50 ohms impedance, DC isolated; SMA female external coaxial connector for frequency specific and/or directional antennas, screw-on filters or attenuators |
Band Select Switch: | The band select switch is used to switch between a full received band or a band of frequencies solely above 1.5 to 2 GHz. A multi-stage bandpass filter system is used to reduce signal levels below 1.5 GHz. This filters out most “noise” allowing exceptionally weak high frequency signals to be detected |
Audio Outputs: | VCO - Audio-frequency changing Voltage Controlled Oscillator for hearing differences in detected signal levels by different pitch levelscharacterization and identification |
| AM – Enhanced AM detection; RF signal |
Analog Mode: | Detecting and measuring continuously transmitted signals |
Digital Mode: | peak detection, identifying and measuring digital and pulsed signals |
Audio Output Jack: | 1V. P-P, 45 mw, 3.5 mm audio stereo jack for earphones or speakers, 15 ohms |
Analog Meter Display: | Visual indication of changes and levels of RF signal strength |
LED Display: | Gradually dimming and enhanced LED lighting depending upon detected signal strength; for recognizing the signal strength from a distance or in darkness |
| Green LED - Maximum at low signal levels-dims as signal strength increases |
| Red LED – Unlit at low signal levels – gradually changes from dim to bright as signal level gets stronger |
| Simultaneous lit Green and Red LEDs due to Digital Signals with rapid on/off switching |
Mini USB Connector: | External meter monitoring, 0.2 to 2.7 V dc output, 1 K impedance; Can be used for CMOS switching of digital video recorders |
| 1 volt P-P audio output of switch selected AM or VCO audio, 15 ohms |
| + 5 VDC (100 ma.) to the connector can externally power the AAF9 |
Power supply: | 2 AA Alkaline batteries |
Battery Life: | Approximately 40 hours |
Dimensions: | 5.6 cm wide x 13 cm high x 3.1 cm thick |
Weight: | 156 g. with batteries installed |
Goedkeuring: | CE, RoHS en WEEE |
Content
- AAF9 Signaalmeter 1 MHz - 14 GHz
- Headphone
- Plug-in mini-speaker
- SMA to BNC coaxial adapter
- 1,8 - 6,4 GHz Log periodical antenna
- 110-240 VAC power supply
- 3 Dipole antennas (0,8 - 0,9, 1,2-2,4, 5.8 GHz)
- USB adapter cable
- Carry case
- GB10 Gebruiksaanwijzing
