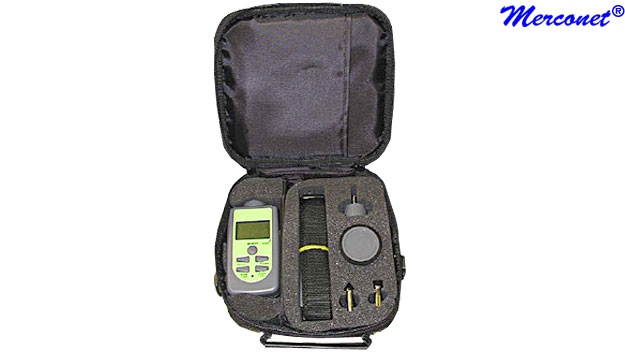

BF17 Tachometer optisch oppervlakte snelheid



Bestel
Detail

The BF17 is a combination photo and contact tachometer that also measures surface speeds of belts and wheels. The BF17 has 0.5 to 30,000PRM measuring range and determines the RPM and surface speed.

Kenmerk
  • Mutifunctions: Photo Tach & Contact Tach & Surface Speed
  • Wide Measuring Range: 0.5 to 30,000 RPM
  • Last Value, Max Value, Min Value: Automatically Saved and Recalled
  • Applications:
    - Measure motor input and output shaft speed
    - Determine conveyor belt speed
    - Confirm fan, motor, and gear RPM
    - Measure RPM of flywheels and pumps
    - Monitor pulley rotation RPM and turbine speeds
Specificatie
Function: Range:                                           Accuracy:
Photo Tach 6 - 30,000 RPM                            ± 0.1% of FS + 1 digit
Contact Tach 6 - 20,000 RPM                            ± 0.1% of FS + 1 digit
Surface Speed 0.9 - 3,046 m/min                        ± 0.1% of FS + 1 digit
  2.0 - 9,990 ft/min                          ± 0.1% of FS + 1 digit
Memory: * when the surface test wheel is 10 cm exactly
  Last/Max/Min Value
Display: 5 digits LCD with function annunciation
Operating Temperature: 0° to 50°C
Operating Humidity: 80% Max. R.H.
Power Supply: 1.5V AA Alkaline batteries x 4pcs.
Goedkeuring: CE, RoHS en WEEE
Content

BF17 Tachometer optisch oppervlakte snelheid
GB10 Gebruiksaanwijzing

Optie

ADR3 Certificatie calibratie BF17
KO10 Instrumentkoffer medium (105 mm)

Prijs
389,62 € (322,00 € excl VAT) each
