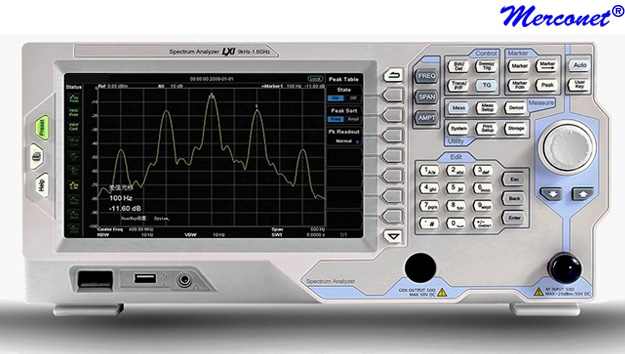

| Frequency | |
| Frequency range: | 9 kHz to 1.5 GHz |
| Frequency resolution: | 1 Hz |
| | |
| Internal Reference Frequency | |
| Reference frequency: | 10 MHz |
| Accuracy: | ± [ (time since last calibration × aging rate) + temperature stability + calibration accuracy] |
| Initial calibration accuracy: | <1 ppm |
| Temperature stability: | 0°C to 50°C, reference to 25°C |
| | <2 ppm |
| Aging rate: | <2 ppm/year |
| | |
| Frequency Readout Accuracy | |
| Marker resolution: | span/ (number of sweep points - 1) |
| Marker uncertainty: | ±(frequency indication × reference frequency accuracy + 1% × span + 10% × resolution bandwidth + marker resolution) |
| | |
| Frequency Counter | |
| Resolution: | 1 Hz, 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz |
| Uncertainty: | ±(frequency indication × reference frequency accuracy + counter resolution) |
| | |
| Frequency Span | |
| Range: | 0 Hz, 100 Hz to maximum frequency of instrument |
| Uncertainty: | ± span/ (number of sweep points - 1) |
| | |
| SSB Phase Noise: | 20°Cto 30°C, fc = 1 GHz |
| Carrier offset 10 kHz: | <-80 dBc/Hz |
| Carrier offset 100 kHz: | <-100 dBc/Hz (typ.) |
| | |
| Residual FM | |
| Residual FM: | 20°C to 30°C, RBW = VBW = 1 kHz |
| | <50 Hz (nom.) |
| | |
| Bandwidths | |
| Resolution bandwidth (-3 dB): | Set "Auto SWT" to "Accy" |
| | 10 Hz to 1 MHz, in 1-3-10 sequence |
| RBW uncertainty: | <5% (nom.) |
| Resolution filter shape factor (60 dB : 3 dB): | <5 (nom.) |
| Video bandwidth (-3 dB): | 1 Hz to 3 MHz, in 1-3-10 sequence |
| | |
| Amplitude | |
| Measurement Range: | fc ≥ 10 MHz |
| | DANL to +20 dBm |
| | |
| Maximum Input Level | |
| DC voltage: | 50 V |
| CW RF power: | attenuation = 30 dB |
| | +20 dBm (100 mW) |
| Max. damage level[1]: | +30 dBm (1 W) |
| | |
| Displayed Average Noise Level (DANL) | |
| Frequency: | attenuation = 0 dB, RBW = VBW = 100 Hz, sample detector, trace average ≥ 50, tracking generator off, 20°C to 30°C, input impendence = 50 Ω |
| PA off 100 kHz to 1 MHz: | <-90 dBm, <-110 dBm (typ.) |
| PA off 1 MHz to 1.5 GHz: | <-110 dBm + 6 × (f/1 GHz) dB, <-115 dBm (typ.) |
| PA on 100 kHz to 1 MHz: | <-110 dBm, <-130 dBm (typ.) |
| PA on 1 MHz to 1.5 GHz: | <-130 dBm + 6 × (f/1 GHz) dB, <-135 dBm (typ.) |
| | |
| Displayed Average Noise Level (DANL) (Normalized to 1Hz) | |
| Frequency: | attenuation = 0 dB, RBW = VBW = 100 Hz, sample detector, trace average ≥ 50, tracking generator off, normalized to 1Hz, 20°C to 30°C, input impendence = 50 Ω |
| PA off 100 kHz to 1 MHz: | <-110 dBm, <-130 dBm (typ.) |
| PA off 1 MHz to 5 MHz: | <-130 dBm + 6 × (f/1 GHz) dB, <-135 dBm (typ.) |
| PA off 5 MHz to 1.5 GHz: | <-130 dBm + 6 × (f/1 GHz) dB, <-135 dBm (typ.) |
| PA on 100 kHz to 1 MHz: | <-130 dBm, <-150 dBm (typ.) |
| PA on 1 MHz to 5 MHz: | <-150 dBm + 6 × (f/1 GHz) dB, <-155 dBm (typ.) |
| PA on 5 MHz to 1.5 GHz: | <-150 dBm + 6 × (f/1 GHz) dB, <-155 dBm (typ.) |
| | |
| Level Display | |
| Logarithmic level axis: | 1 dB to 200 dB |
| Linear level axis: | 0 to reference level |
| Number of display points: | 601 |
| Number of traces: | 3 + math trace |
| Trace detectors: | normal, positive-peak, negative-peak, sample, RMS, voltage average |
| Trace functions: | clear write, max hold, min hold, average, view, blank |
| Units of level axis: | dBm, dBmV, dBμV, nV, μV, mV, V, nW, μW, mW, W |
| | |
| Frequency Response | |
| Frequency response: | fc ≥ 100 kHz, attenuation = 10 dB, relative to 50 MHz, 20°C to 30°C |
| PA off 100 kHz to 1.5 GHz: | <0.7 dB |
| | fc ≥ 1 MHz, attenuation = 10 dB, relative to 50 MHz, 20°C to 30°C |
| PA on 100 kHz to 1.5 GHz: | <1.0 dB |
| | |
| Input Attenuation Switching Uncertainty | |
| Setting range: | 0 to 30 dB, in 1 dB step |
| Switching uncertainty: | fc = 50 MHz, relative to 10 dB, 20°C to 30°C |
| | < 0.5 dB |
| | |
| Absolute Amplitude Uncertainty | |
| Uncertainty: | fc = 50 MHz, peak detector, preamplifier off, attenuation = 10 dB, input signal level = -10 dBm, 20°C to 30°C |
| | <0.4 dB |
| | |
| RBW Switching Uncertainty | |
| Uncertainty: | relative to 1 kHz RBW |
| | <0.1 dB |
| Reference Level | |
| Range: | -100 dBm to +20 dBm, in 1 dB step |
| Resolution: | log scale: 0.01 dB |
| | linear scale: 4 digits |
| | |
| Preamplifier | |
| Gain 100 kHz to 1.5 GHz: | 20 dB (nom.) |
| | |
| Level Measurement Uncertainty | |
| Level Measurement Uncertainty: | 95% confidence level, S/N > 20 dB, RBW = VBW = 1 kHz, preamplifier off, attenuation = 10 dB, -50 dBm < input level ≤ 0 dBm, fc > 10 MHz, 20°C to 30°C |
| Level measurement uncertainty: | <1.5 dB (nom.) |
| | |
| RF Input VSWR | |
| VSWR 300 kHz to 1.5 GHz: | <1.5 (nom.) |
| | |
| Distortion | |
| Second Harmonic Intercept | |
| Second harmonic intercept (SHI): | fc ≥ 50 MHz, input signal level = -20 dBm, attenuation = 10 dB |
| | +40 dBm |
| | |
| Third-order Intercept | |
| Third-order intercept (TOI): | fc ≥ 50 MHz, two -20 dBm tones at input mixer spaced by 200 kHz, attenuation = 10 dB |
| | +10 dBm |
| | |
| 1dB Gain Compression | |
| 1dB compression of input mixer (P1dB): | fc ≥ 50 MHz, attenuation = 0 dB |
| | >0 dBm |
| | |
| Spurious Response | |
| Spurious Response: | input terminated 50 Ω, attenuation = 0 dB, 20°C to 30°C |
| | <-88 dBm (typ.) |
| Intermediate frequency: | <-60 dBc |
| System related sidebands: | referenced to local oscillators, referenced to A/D conversion, referenced to subharmonic of first LO, referenced to harmonic of first LO |
| | <-60 dBc |
| Input related spurious: | mixer level = -30 dBm |
| | <-60 dBc |
NOTE: [1] Except the internal local oscillator (1820 MHz) and its harmonics.
|
| Sweep | |
| Sweep time: | span ≥ 100 Hz: 10 ms to 1500 s |
| | zero span: 20 μs to 1500 s |
| Sweep time uncertainty: | span ≥ 100 Hz: 5% (nom.) |
| | zero span (sweep time setting value > 1 ms): 5% (nom.) |
| Sweep mode: | continuous, single |
| | |
| Trigger | |
| Trigger source: | free run, video, external |
| External trigger level: | 5 V TTL level |
| | |
| Input /Output | |
| Front Panel Connectors | |
| RF input:impedance: | 50 Ω (nom.) |
| | connector: N female |
| Tracking generator output:impedance: | 50 Ω (nom.) |
| | connector: N female |
| | |
| Internal/ External Reference | |
| Internal reference: | frequency: 10 MHz |
| | output level: +3 dBm to +10 dBm, +8 dBm (typ.) |
| | impedance: 50 Ω (nom.) |
| | connector: BNC female |
| External reference: | frequency: 10 MHz ± 5 ppm |
| | input level: 0 dBm to +10 dBm |
| | impedance: 50 Ω (nom.) |
| | connector: BNC female |
| | |
| External Trigger Input | |
| External Trigger Input: | impedance: 1 kΩ (nom.) |
| | connector: BNC female |
| | |
| Communication Interface | |
| USB host: | connector: A |
| | plug protocol: version2.0 |
| USB device: | connector: B plug |
| | protocol: version2.0 |
| LAN: | LXI core 2011 device: 10/100Base, RJ-45 |
| | |
| General Specifications | |
| Display: | TFT LCD |
| Resolution: | 800 x 480 pixels |
| Size: | 8 inch |
| Colors: | 64k |
| | |
| Printer Supported | |
| Protocol: | PictBridge |
| | |
| Mass Memory | |
| Mass Memory: | flash disk (internal), USB storage device (not supplied) |
| | |
| Power Supply | |
| Input voltage range, AC: | 100 V to 240 V (nom.) |
| AC supply frequency: | 45 Hz to 440 Hz |
| Power consumption: | 35 W (typ.), max. 50 W with all options |
| | |
| Environmental | |
| Operating temperature range: | 0°C to 50°C |
| Storage temperature range: | -20°C to 70°C |
| Humidity: | 0°C to 30°C (≤ 95% rel. humidity) |
| | 30°C to 40°C (≤ 75% rel. humidity) |
| Altitude operating height: | up to 3,000m |
| | |
| Electromagnetic Compatibility and Safety | |
| EMC in line with EN61326-1:2006: | IEC 61000-4-2:2001: ± 4.0 kV (contact discharge), ± 4.0 kV (air discharge) |
| | IEC 61000-4-3:2002: 3 V/m (80 MHz to 1 GHz), 3 V/m (1.4 GHz to 2 GHz), 1 V/m (2.0 GHz to 2.7 GHz) |
| | IEC 61000-4-4:2004: 1 kV power lines |
| | IEC 61000-4-5:2001: 0.5 kV (phase to neutral), 0.5 kV (phase to PE), 1 kV (neutral to PE) |
| | IEC 61000-4-6:2003: 3 V, 0.15 to 80 MHz |
| | IEC 61000-4-11:2004: voltage dip: 0% UT during half cycle, 0% UT during 1 cycle, 70% UT during 25 cycles
short interruption: 0% UT during 250 cycles |
| Electrical safety: | in line with UL 61010-1:2012, CAN/CSA-C22.2 No. 61010-1-12, EN 61010-1:2010 |
| Dimensions: | 361.6 mm × 178.8 mm × 128 mm (W x H x D) |
| Weight: | 4.25 kilogram |
| Goedkeuring: | CE, RoHS en WEEE |
