Detail
Bestemd: Voor iedereen die werkt aan netwerken bij:
- Bedrijven
- Industrie
- Data centers
- Offshore
- Systeembeheer
Inzetbaar voor: - Netwerk UTP Cat5e tot Cat6A
- Rapportage
- Reparatie
- Analyse
- Onderhoud
- Preventie
The AFN7 is the most affordable copper cable certification tester for twisted pair cabling systems with performance levels up to CAT6A/Class EA. Electricians and network cabling contractors can perform certification testing on copper installations with speed and accuracy using the AFN7. In addition to standards based permanent link and channel certification, the AFN7 offers optional test adapters for coaxial cable testing and patchcord testing.
Kenmerk
- Advanced cable certification up to 500 MHz
- Certifies to Industry standards – Class D/E/EA & Category 5e/6/6A
- Fast Autotest time of 9 seconds
- Meets TIA and ISO Level IIIe accuracy requirements
- Certification testing of Patch-cords
- Industrial Ethernet testing with M12 connectivity
- Advanced reporting and documentation
- Most affordable certifier for premise cabling and industrial Ethernet
- Touch screen
Info
Geaccepteerd door:
Fast and simple for highest productivity

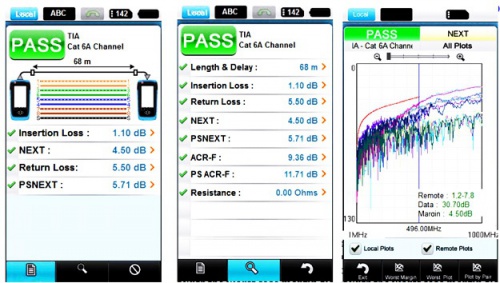

The AFN7 completes CAT 6A certification test in seconds. It offers intuitive navigation through the on screen menus, and generates professional reports through the accompanying PC software.
Proven Accuracy
The AFN7 is based on measurement system independently verified by highly respected test laboratories including ETL.
Copper patch-cord testing with WireXpert
The AFN7 offers an efficient way for quickly identifying and recording the performance of patch-cords. With its fast and accurate dual-ended testing, AFN7 patch-cord test kits are suitable for both manufacturing test applications, as well as for incoming inventory inspection at end user premises. The AFN7 patch-cord test kits are available for testing CAT5e, CAT6, and CAT6A patch-cords.
Industrial Ethernet cabling test
The The AFN7 industrial Ethernet cable test solution comprise of M12 adapter kits with both channel and permanent link configurations using M12 industrial Ethernet connectors are supported. Industrial Ethernet kits supporting X-Coded M12 interface are also available, making it possible to effectively test 10-Gig ready industrial Ethernet cables.
Coax cable test
The AFN7 also supports testing of coaxial cables for attenuation and return loss with the optional coax test adapters.

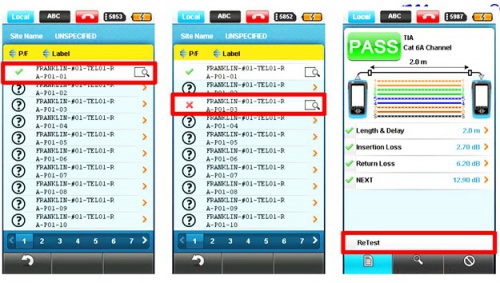

Professional ReportXpert
Manage your results and generate professional reports and warranty documents. The AFN7 certification solution includes software, a PC based reporting software utility that produces full colour graphical reports in summary or detail.

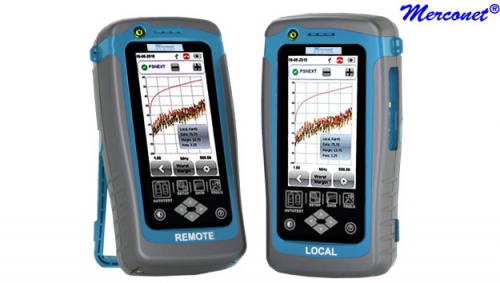

Easy to Use and ruggedized design
The AFN7 comes with an intuitive touch sensitive user interface, featuring bright colour LCD screens designed for industrial, heavy duty usage. The Dual Control System (DCSTM) - featuring identical devices for remote and main unit - makes it fast and simple to operate the test cycles Whether used by two technicians or one person working alone, walking time between outlets is minimized.
Frequently Asked Questions
Specificatie
| Copper testing | |
| Certification Testing: | TIA 568-C.2 CAT 5e, 6, 6A |
| | ISO/IEC 11801, EN 50173 Class D,E,EA |
| | CAT 5e, 6, and 6A patch-cord |
| Autotest time - CAT6A: | 9 sec |
| Max cable length for dual ended Autotest: | 500m |
| Insertion Cycles | Channel: 10,000 typical |
| | Permanent link: 5,000 typical |
| Test Parameters | As specified in TIA 1152, IEC 61935-1 |
| Wiremap | |
| Loop Resistance: | 0 to 40 Ω, ±0.1 Ω |
| Length: | 0 to 500m, ±0.5m (dual ended testing) |
| Propagation Delay and Delay Skew: | 0 to 5000 ns, ±1 ns |
| Attenuation: | 0 to 70 dB, ±0.1dB |
| Pair-to-Pair and Power-Sum NEXT: | 0 to 85 dB, ±0.2 dB |
| Pair-to-Pair and Power-Sum ACRF: | 0 to 85 dB, ±0.2 dB |
| Return Loss: | 0 to 40 dB, ±0.2 dB |
| ACRN, PSACRN: | -25 to 85 dB, ±0.5 dB |
| Advanced Diagnostics: | Time-domain fault Locator for RL and NEXT |
| Measurement Accuracy: | Exceeds TIA 1152 & IEC61935-1 level IIIe |
| Measurement Frequency Range: | 1- 500 MHz |
| General Specifications | |
| Interfaces: | Probe Interface, RJ-45 Ethernet, USB host and device, talkset, power jack |
| Display: | 15cm industrial LCD, touch sensitive area on both units |
| Enclosure: | Ruggedized plastic with rubber overmould, withstands 1.5m drop test on hard surface |
| Remote unit abilities: | View test results, save tests, start autotest |
| Power Supply: | AC 100-240V to 12V, 3A power adapter |
| Input over-voltage protection: | Protected against Telco voltages |
| Battery: | Removable and rechargeable Li-Ion |
| Battery Capacity: | >8 hours continuous operation |
| Internal Storage Capacity: | 2000 copper test results with full plot
information |
| External Storage: | USB Flash Drive |
| Supported Languages: | Chinese, Czech, English, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -20 to 60°C |
| Relative humidity: | 10% to 80% |
| Dimensions: | 232 x 126 x 87 mm (9.1 X 5.0 X 3.4 inch) |
| Weight: | Approx. 1.4 kg (3.0 lb) / unit |
| Goedkeuring: | CE, RoHS en WEEE |
Content
AFN7 10Gbit certificatie tester CAT6A
AFO1 Batterijen AFN7/AFR1
AFO4 Cat6A Permanent link interface AFN7/AFR1
AFN8 Cat6A Channel adapter AFN7/AFR1
AFO7 USB Stick met software en gebruiksaanwijzing AFN7/AFR1
AFO8 Communicatie set AFN7/AFR1
AFO9 Voeding adapters AFN7/AFR1
AFP0 Netvoedingskabel AFN7/AFR1
AFP2 Tas AFN7/AFR1
AHG7 Class EA certificatie software AFN7
AFP1 Certificatie calibratie AFN7
Optie
CU95 Netwerkcertificatie cursus
AFN8 Cat6A Channel adapter AFN7
AFN9 Cat6A Permanent link interface & Test kabel AFN7
AFO0 Cat6A Test kabel AFN7
AFP6 Certificatie calibratie AFN7
AHI4 Patch kabel adapters CAT6A AFN7(2x)
AHI5 Patch kabel adapters CAT6 AFN7(2x)
AHI6 Pair of patch cord adapters with CAT5e AFN7
AHI7 CAT6A patch kabel voor vervanging bestaande kabel op adapter AFN7(2x)
AHI8 CAT6 patch kabel voor vervanging bestaande kabel op adapter AFN7(2x)
KO15 Instrumentkoffer medium (157 mm)
Prijs
7.330,18 € (6.058,00 € exclusief BTW) per stuk
Prijzen zijn per stuk, exclusief 21% BTW en gelden voor levering af magazijn Voorthuizen. Bij levering in Nederland of in België worden verzendkosten altijd in rekening gebracht tot maximaal EUR 25,00. Ditzelfde geldt voor expreskosten en/of rembourskosten. Bij de producten trainingen en cursussen is na het bevestigen van de cursusdatum, bij het niet verschijnen van de deelnemer(s), de verplichting ontstaan tot volledige betaling. Het volgen op een latere datum ingeval van niet verschijnen is in overleg mogelijk, maar wordt uitsluitend gezien als service. Hieruit kan geen enkel recht uit worden onttrokken.
