AJL0 Vibratie Monitor Ethernet 8 Ch

Detail

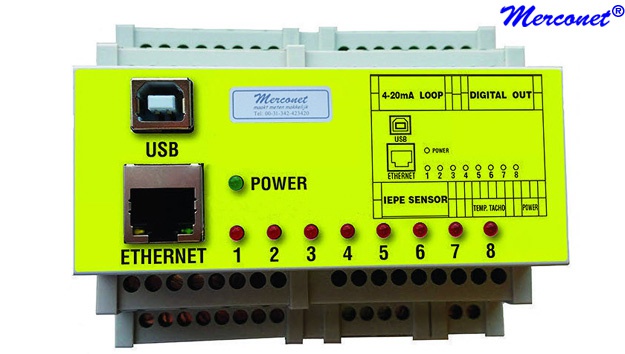

The AJL0 is the new generation of low price-high performance installed vibration analyser. With up to 8 accelerometer inputs, 8 digital outputs, 8 analogue outputs, temperature and tacho inputs as well as USB and Ethernet connectivity, the AJL0 module offers unrivaled price/per channel performance.

The analysers can be used in several different ways:
Standalone Operation: Connect up to 8 accelerometers and up to 8 relays and instantaneously monitor and alarm on-key vibration points. Using the included Monitor PC software the alarms can each independently be set to trigger on/either a velocity level or a g level. If a tacho is connected, a speed range can be set so as not to activate during machine start-up or shutdown.
Legacy Systems Operation: for each connected accelerometer, the Vibration Monitor units can also output levels of vibration (g or velocity) as 4 to 20mA signals for connection to existing monitoring systems such as PLCs, etc.
PC Operation: If a laptop/PC is connected via a USB cable, up to 64 modules can be monitored and the vibration levels displayed on screen. With the PC connected more detailed vibration analysis can be carried out with up to 51,200 line FFT analysis.
Online Cloud Operation: by subscribing to Data Decypher cloud-based service all installed modules can be monitored and analysed from a single web-based interface. Just log on via your standard internet browser and all modules can be viewed and configured. Furthermore, detailed reporting is just a click away, as is automatic alarm notification via email.
