Certificatie 2 Fiber RxTx MM850/980/1300SM/1310/1490/1550/1625 ANJ7

Detail

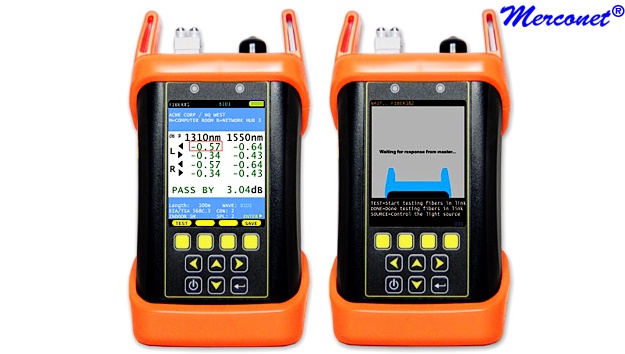

The ANJ7 is a high-accuracy, high-resolution, microprocessor-controlled optical loss test sets (OLTS) capable of performing a wide variety of testing applications, from basic optical loss measurement up to simultaneous bi-directional, dual-wavelength fiber link certification. With a wide measurement range and wavelengths, the ANJ7 is ideal for both singlemode and multimode fiber link certification. Enclosed in an attractive hand-held case made from high impact plastic and protected by a protective rubber boot, test readings and graphical help screens can be viewed on the color LCD, and an intuitive 10-key keypad allows for easy data entry. The ANJ7 is powered by re-chargeable lithium polymer batteries, typically allowing up to 50 hours of continuous use. A built-in auto-shutdown feature further conserves battery life. Batteries are re-charged through the USB port via supplied battery chargers. The intuitive built-in Link Wizard prompts the user to enter key information used to calculate standards-based link budgets for fiber optic certification testing, and helpful diagrams guide the user through the setup and testing procedure. Thousands of data points with descriptive link and fiber run labels can be stored in internal memory. Stored information can be selectively viewed, re-tested, or deleted from the device. The data can also be downloaded to the certification software to produce professional-looking formatted certification reports. The software includes three products together; the integrated power meter certification, the optional OTDR traces, and the optional endface analysis results all on the same report. Pair Mode - Fiber Optic Link Pair Certification

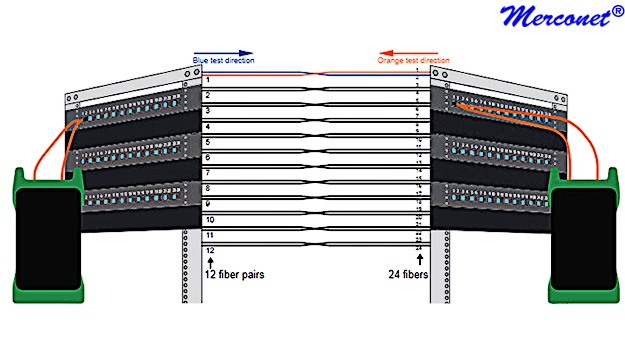

PAIR mode is the fastest, easiest, and most innovative way to certify a fiber pair at up to two wavelengths simultaneously, including length measurement with each test, since bi-directional testing is not required by cabling standards; i.e. test direction does not matter.
A. PAIR mode is twice as fast as bi-directional link certification and much less confusing
Testing bi-directionally requires a two-step process: test in one direction, swap fiber ports, then test in the other direction. PAIR mode cuts testing time in half by eliminating the second (not required) direction, and keeps things simple by eliminating the often-confusing and error-prone step of swapping fiber ports.
B. PAIR mode is twice as fast as traditional link certification
Traditional link certification certifies one fiber at a time. PAIR mode tests two fibers at a time, significantly speeding up the certification process. In addition, PAIR mode allows length measurement with each test, something that traditional link certification cannot do.
The Link Wizard in the ANJ7 uses attenuation parameters from popular cabling standards to certify fiber links, and shows complete PASS/FAIL test results for both fibers at both wavelengths, all on the same screen, right in the field. BIDI MODE Bi-directional (BIDI) Fiber Optic Link Certification

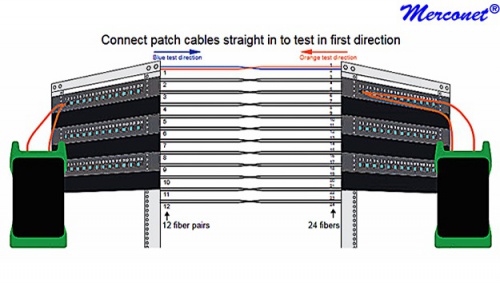

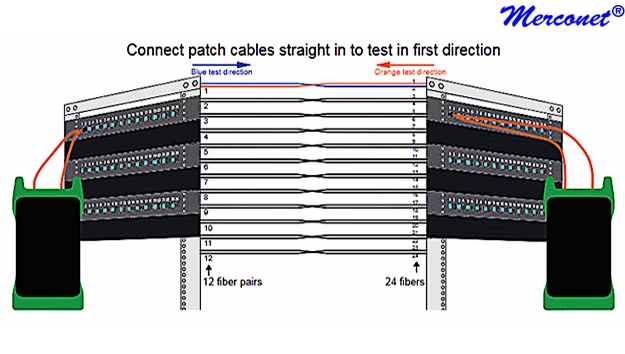

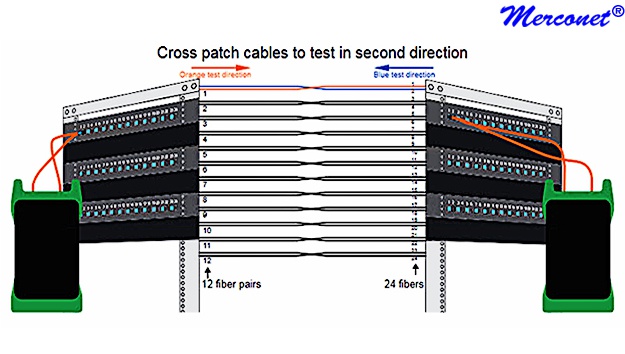

Similar to PAIR mode, BIDI (bi-directional) mode allows users to quickly and conveniently certify a fiber pair in both directions at up to two wavelengths simultaneously, including length measurement with each test. Keep in mind that while bi-directional testing is not a requirement of cabling standards, it may still be required by the end user.
The Link Wizard in the ANJ7 uses attenuation parameters from popular cabling standards to certify fiber links, and shows complete PASS/FAIL test results for both fibers at both wavelengths, all on the same screen, right in the field. User-friendly setup and test procedures
Helpful diagrams on the screen prompt the user to connect the tester to the link as shown, and text-based help screens are available in case users have questions in the field.
Affordability
The ANJ7 is a fraction of the cost of bulky over-priced certifiers, saving cost-conscious technicians and installers thousands of dollars that could be better used elsewhere.
Small, compact size
At nearly a third of the size and weight as compared to much bulkier ultra-expensive certifiers on the market, Fiber ANJ7 is truly hand-held pocket-sized devices that can be operated in one hand!
